12 in 1 Mini OTDR 1310/1550nm 26/24db
Features:

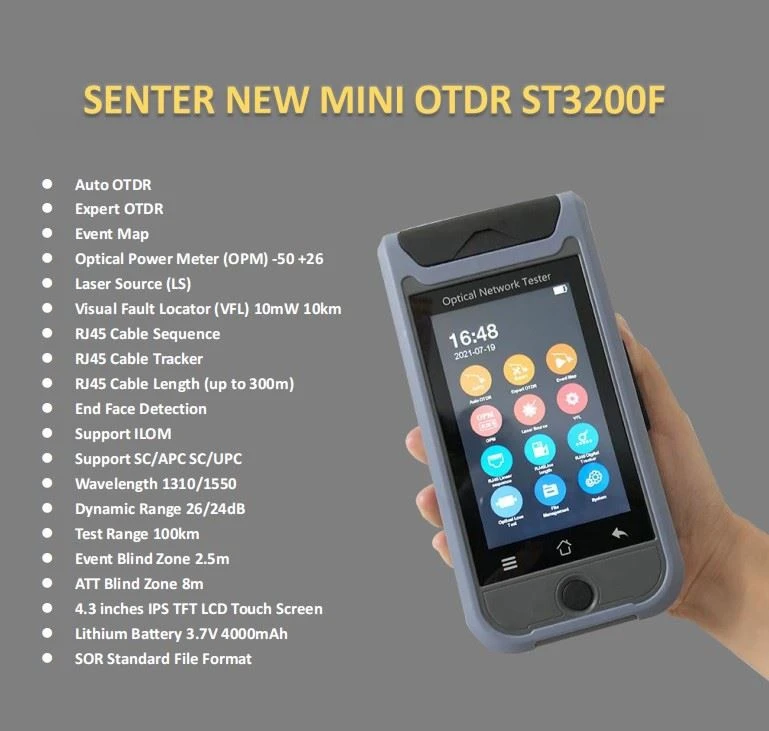

ST3200F Handheld Mini OTDR
It adopts 4.3 inch touch screen
1310/1550nm 26/24db, SM MM optional

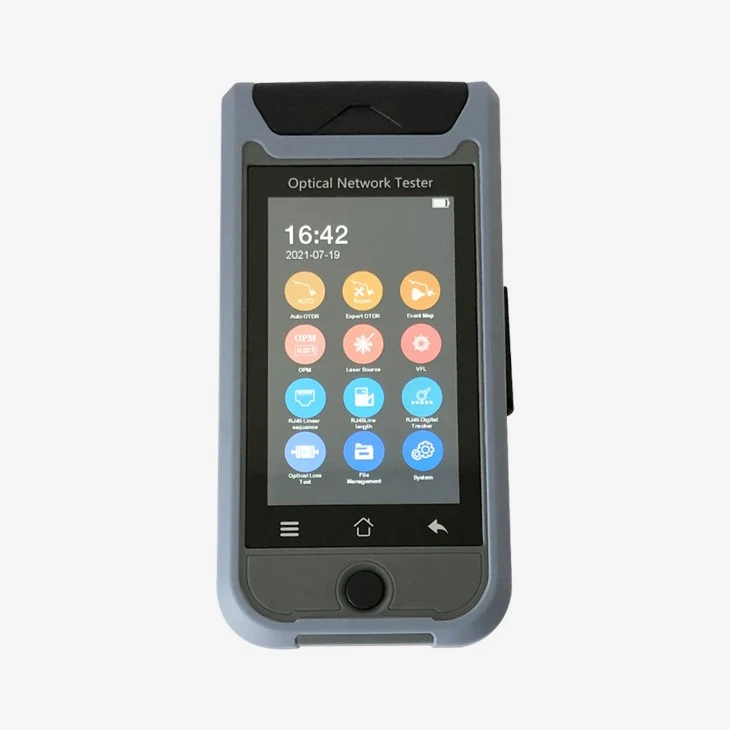

Integrates 12 functions: expert otdr, auto otdr, OPM,
VFL, LS, Fiber loss, RJ45 length/sequence/tracing...
More portable, easy to carry and operate.
Specification:
OTDR | |||||||
Model | ST3200F-A | ST3200F-B | ST3200F-C | ST3200F-D | ST3200F-E | ||
Type | G.652 SM | ||||||
Wavelength | 1310/1550±20nm | 1310/1550±20nm | 1310/1550±20nm | 1625nm | 1650nm | ||
Dynamic Range | 24/22dB 22dB | 26dB/26dB 24dB | 32/30dB | 22dB | 22dB | ||
Event Blind Zone | 2.5m | ||||||
ATT Blind Zone | 8m | ||||||
Test Range | 500m/1km/2km/4km/8km/16km/32km/64km/100km | ||||||
Pulse Width | 3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1us/2us/3us/5us/8us/10us/20us | ||||||
Ranging Accuracy | ± (1m plus Sample interval plus 0.005 percent Test distance) | ||||||
Linearity | Less than or equal to 0.05dB/dB | ||||||
Sample Points | 16k128k | ||||||
Sample Resolution | 0.05m8m | ||||||
Loss Resolution | 0.001dB | ||||||
Loss Threshold | 0.20dB | ||||||
Range Resolution | 0.001m | ||||||
Refractive Index | 1.00000-2.00000 | ||||||
Reflection Accuracy | ±3dB | ||||||
File Format | SOR Standard File Format | ||||||
Loss Analysis | 4-point method /5-point method | ||||||
Laser Safety Level | Class II | ||||||

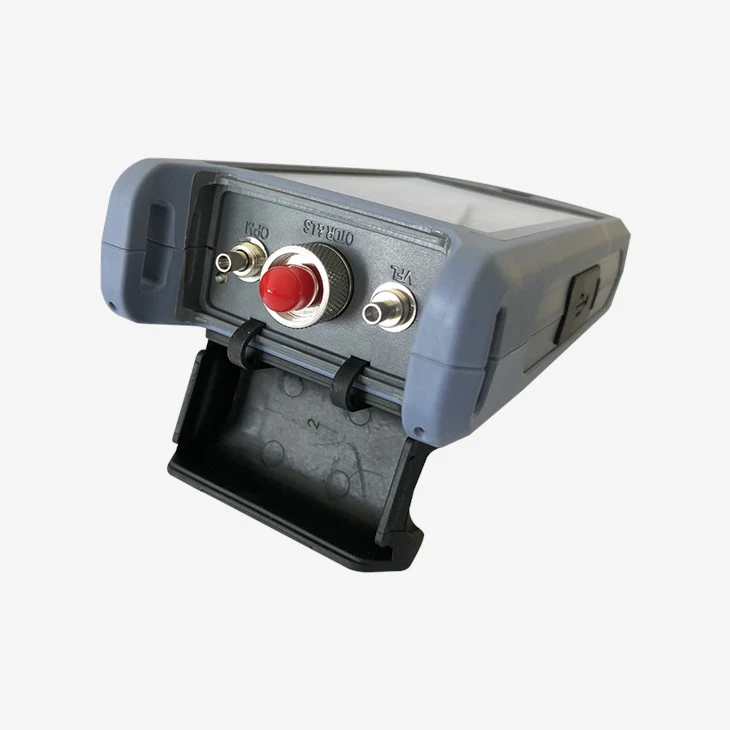

Connector | FC/UPC (Interchangeable SC,ST) Or SC/APC | ||||||
Refresh Rate | 3Hz (Typ.) | ||||||
Multitasking | Support | ||||||

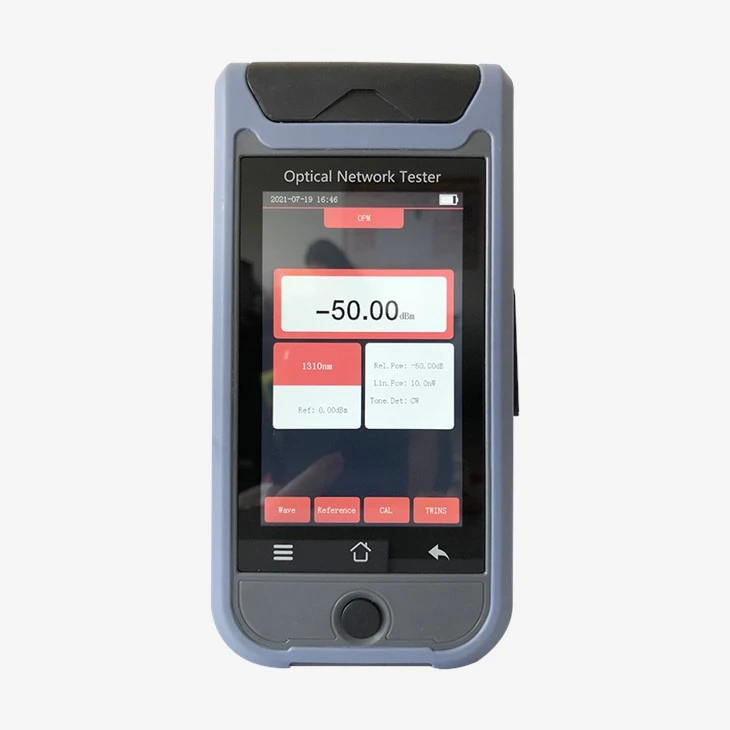

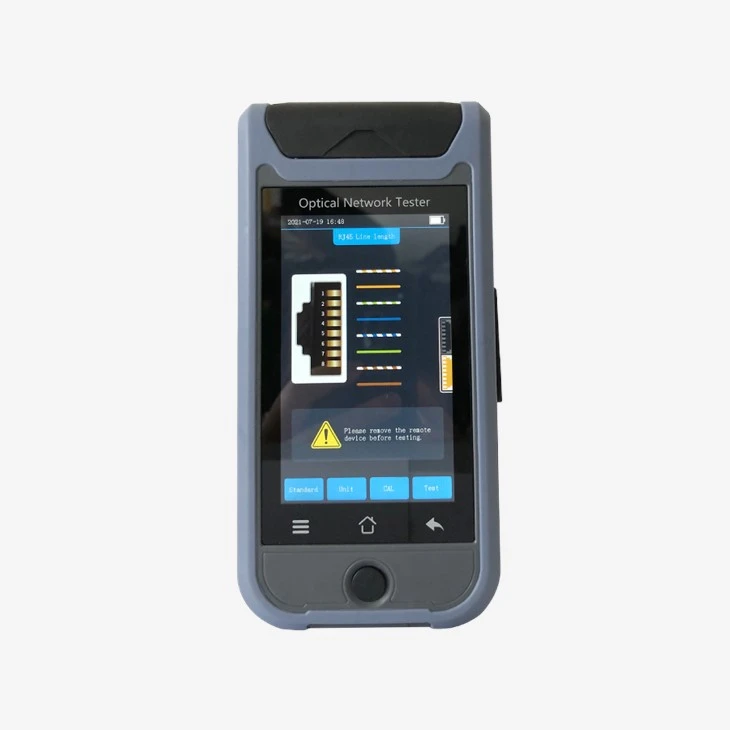

OPM | LS | RJ45 Cable Length | |||||
Wave Range | 800nm1700nm | Wavelength | Same with OTDR | Test Distance | Greater than or equal to 300m | ||
Test Range: -70 plus 10dBm/ -50 plus 26dBm | Laser Type | FP - LD | Others | ||||
Power | Greater than or equal to -5dBm | Display:4.3 inches 800480 IPS TFT - LCD Multi touch capacitive touch screen | |||||
Resolution | 0.01dB | Stability cw, ±0.5dB/15min (After15min of preheating) | |||||
Uncertainty | ±5 percent | FC/UPC (Interchangeable SC,ST) | Power supply: AC/DC adapter Input:100V240V, 50/60Hz, 0.6A Output: 5v 2A Lithium battery:3.7V,4000mAh | ||||
Frequency identification | CW/270/330/1k/2kH (Use inner LS) | Mode: CW/270Hz/330Hz/1kHz/2kHz | |||||
Connector | Universal FC/SC/ST | Wave Recognition | Support | Battery Working | Continuous test> 12h | ||
Wave Recognition | Support | Optical Loss Test | Data Storage | 8GB, Greater than or equal to 20 thousand curves | |||
VFL | Wavelength | Same with LS | Data Interface | USB Type C | |||
Wavelength | 650nm±20nm | IL Test | Support | Work Temperature | -10 degree plus 50 degree | ||
Output Power | Greater than or equal to 10mW | RJ45 cable tracker | Storage Temperature | -40 degree plus 70 degree | |||
Mode | CW/1Hz/2Hz | Mode | Digital tracking | Relative Humidity | 0〜95 percent Non Condensing | ||
Connector FC/UPC (Interchangeable SC ST) | Distance | Greater than or equal to 300m | Weight | Less than or equal to 0.5kg | |||
Safety Level | Class III | Support Online/ Line Pair Tracking | Size | 173mm 109mm 45mm | |||
